WACO Accuseam 3000

Automatic Double Seam Analysis -
fast, accurate, easy to use

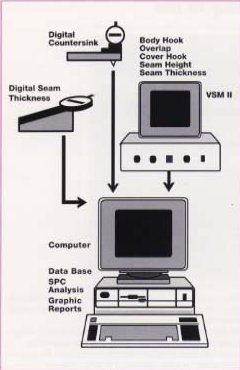

     Wilkens-Anderson Company proudly introduces the new WACO Accuseam 3000 to our existing line of can quality control equipment. Combining the technology of the WACO VSM II Video Seam Monitor with the Accuseam 3000 software and interface, it is now possible to accurately measure can seams in under 3 seconds.

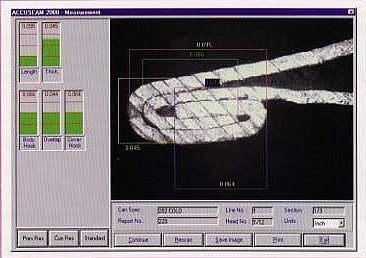

     The Accuseam 3000 digitally scans, analyzes, and measures the can seam, then compares the results against a user defined specification. Out of spec readings are highlighted on the monitor for corrective action by the operator. The Accuseam 3000 improves speed, accuracy and virtually eliminates human error and misinterpretation.
  • Images of can seams with their dimensions can be saved on the computer hard drive or network for future reference. This feature is invaluable in documenting problems. Up to 16 saved images can be displayed on the monitor simultaneously for easy comparison.
  • Multi-level password protection insures that only authorized personnel will have access to the system.
  • Measurement data is saved to a database for organization into reports, graphs and SPC analysis.
  • Companies on a budget can purchase the WACO Accuseam 3000 in sections, starting with the versatile VSM II, and later adding software, interface and external guages as their budget permits.
  • A variety of hardware options and configurations is available to fit the needs of users. External guages for countersink and seam thickness are available, and may be recommended for certain installations.
Chart, histogram and seam report shown above are typical of what can be printed out for review and retained for "hard copy" records.


Ordering Information
For Beverage Cans:
Accuseam 3000 Automatic Double Seam Analyzer Complete
WACO VSM II Video Seam Monitor #10732-00
Digital Video ImageProcessor Board (PCI)
Accuseam 3000 software with SPC
Digital Seam Thickness Guage
Digital Countersink Guage
Interface to Accuseam 3000
Pentium PC with 16 MB RAM, SVGA Monitor
Keyboard, Mouse, Windows 98
Cat. No. 97500-50

For Food Cans:
Accuseam 3000 Automatic Double Seam Analyzer Complete
WACO VSM II Video Seam Monitor #10732-00
Digital Video ImageProcessor Board (PCI)
Accuseam 3000 software with SPC
Pentium PC with 16 MB RAM, SVGA Monitor
Keyboard, Mouse, Windows 98
Cat. No. 97500-60

Optional:
Digital Seam Thickness Guage
Digital Countersink Guage
Interface to Accuseam 3000
