TECHNICAL SPECIFICATION
| Measuring principle |
Spectral |
| Spectral response |
RT100: 400-700 nm
RT200: 400-800 nm |
| Spectral resolution |
7.5 nm |
| Measuring geometry |
RT100:45°
/ 0°
RT200:
0° / 0° |
| Measuring area |
RT100: 3mm
RT200: 1- 3 mm |
| Repeatability |
DE
</= 0.1 on white reference |
| Illuminants |
CIE Illuminant A, C,
D65 |
| Observers |
2°,
10° |
| Interface |
RS 232 port |
| Power supply |
9V dc, 230 or 110 V |
| Approvals |
CE |
| Instrument housing |
Anodized steel |
| Dimensions |
104 x 54 x 36 mm |
The Lovibond RT100 and
RT200 colorimeters include a spectrophotometer unit with appropriate measuring
head, color measurement software for instrument operation and for presentation
and analysis of reflectance data on a PC computer, a white calibration
standard, low voltage power pack, PC interface cable, user instructions
and a carrying case. |
-
Low cost spectral
system
-
Certified calibration
standard included
-
Compact and lightweight
measuring head
-
Storage of referenced
and measured values
-
Rapid reflectance
data at the click of a button
The
RT series offers a choice of compact, reflectance colorimeters, giving

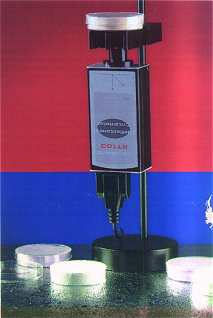

spectral data for quality control of surface color. The Lovibond RT100
consists of a hand-held spectrophotometer unit with an integrated measuring
head (45° / 0° measuring geometry) for precision color measurement
and control of regular surfaces. The Lovibond RT200 consists of a similar
spectrophotometer unit but with a flexible, fiber-optic measuring head
(0° / 0° measuring geometry) for color measurement of small areas,
challenging shapes or relatively inaccessible places.
The
RT100 and RT200 instruments both combine advanced microspectrometer technology
with the computing power of a PC. The spectrophotometer units link to a
standard PC computer with software installed for instrument operation and
for presentation, analysis and logging of reflectance data. Results can
be expressed in a choice of color values and color difference measurements.
Color
Measurement
| XYZ tristimulus values |
DE,
DL*,
Da*, Db*,
DC*, Dh*
color difference |
| CIE L*a*b* color space |
Whitenes Index |
| CIE xyY chromaticity
co-ordinates |
Yellowness Index |
| CIE L'u'v color space |
Reflectance |
| CIE L*C*h color space |
Metameric Index |
The Lovibond RT100 is
supplied with RT Color Measurement System software for instrument operation
and for presentation and analysis of reflectance data.
-
Works under MS Windows 95/98/NT
-
Displays a choice of color
spaces or reflectance curves
-
Input and selection of reference
values
-
Averaging of multiple measurements
-
Includes a verbal indication
of color differences
-
Data export to ASCII files
-
Direct data export into MS
Excel
|
